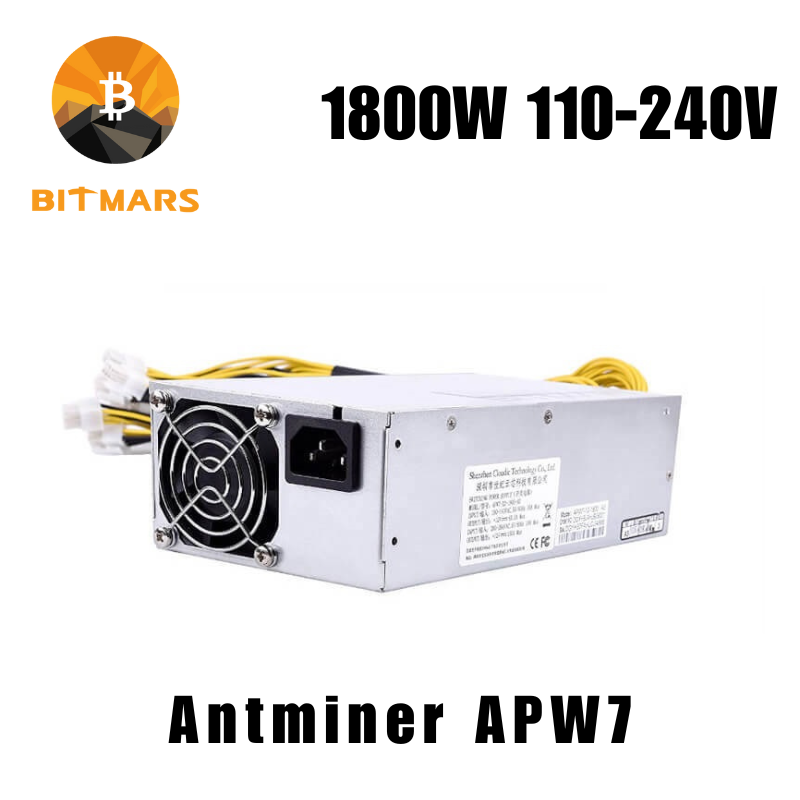

BITMAIN Antminer APW7 Power Supply PSU for Mining PSU
$30.00
Function: Z15/Z15e/Z15j Equihash Air-cooling Miner
| Product Glance | |
| Out1 | |
| DC Voltage | 12.0V |
| Rated Current(220 V input) | 150A |
| Rated Power(220 V input) | 1800W |
| Rated Current(110 V input) | 83.3A |
| Rated Power(110 V input) | 1000W |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.0-12.5V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Detailed Characteristics | |
| Input | |
| Voltage Range | 100-264V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（220V 50Hz） |
| Protection | |
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 150-200A |
| Environment | |
| Operating Temperature | -20-60℃ |
| Operating Humidity | 0~40 |
| Altitude | < 2000m |
| Structure | |
| Dimensions | 206*110*62mm |
| Net Weight | 2.0kg |
| Cooling System | Forced‐air cooling |
| Noise | 43DB |
